Total Time Since New: 8,099.4 Hours (as of 9/15/2023)
Total Cycles Since New: 5,190 Cycles
Maintenance Tracking: Veryon (Formerly Flight Docs)
Current Regulation: Part 91
Engines Honeywell TFE 738-1-1B
Engine 1:
Serial Number (s): P105499
Total Time Since New: 7,582.9 Hours
Total Cycles Since New: 4,871 Cycles
Program Coverage: MSP Gold
Program Coverage Cost/Hour: $788.67
MPI (Next due): 9,243.1
CZI (Next due): 9,232.4
Engine 2:
Serial Number (s): P105498
Total Time Since New: 7,582.9 Hours
Total Cycles Since New: 4,871 Cycles
Program Coverage: MSP Gold
Program Coverage Cost/Hour: $788.67
MPI (Next due): 9,243.1
CZI (Next due): 9,232.4

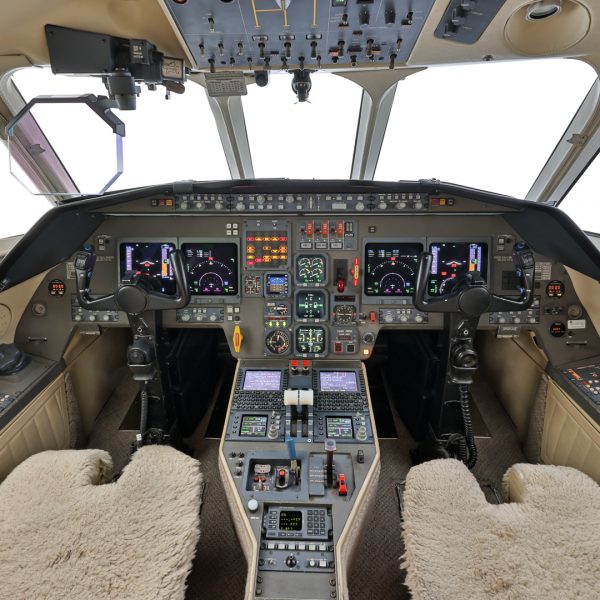

Avionics Package: Rockwell Collins Proline IV system
Flight Director: Dual Collins integrated Avionics Processor
Autopilot: Collins APS-4000
Flight Management System (FMS): Dual Collins FMS-6100 w/dual GPS 4000’s
Communication (VHF) Transceivers: Triple Collins VHF-422C
Navigation (VHF) Receivers: Dual Collins VIR-432
Automatic Direction Finders (ADF): Dual Collins ADF-462
Distance Measuring Equipment (DME): Dual Collins DME-442
Transponder P/N 622-9210-501: Dual Collins TDR-94D (Mode S) ENHANCED
Color Weather Radar: Collins TWR-850 W/ Dual Controllers
TCAS II: Collins TCAS-4000 (change 7)
Radar Altimeter: Dual Collins ALT-55B
AirCell radiotelephone: AirCell Axxess/ATG-4000 with WIFI
Airborne Flight Information: Honeywell AFIS w/Skyprinter
High Frequency Communications UHF: Dual Collins HF-9000 w/Selcal 2 channel
Satellite Data Communications: Honeywell SATAFIS
Inertial Reference System (IRS): Dual Honeywell Laseref IV
Cockpit Voice Recorder (CVR): Honeywell SSCVR (2 hr.)
Enhanced GPWS: Honeywell Mark V-Cat III
Heads Up Guidance system (HUD): Flight Dynamics HGS-2850
Digital Flight Data Recorder (DFDR): 57 Parameter DFDR (135 compliant)
Emergency Location (ELT): Socata ELT 97/406
WAAS/LPV:
ADS-B Out:
Mach Hold Feature:
USB Data Loader for FMS:
Seating Capacity: 10 Seats

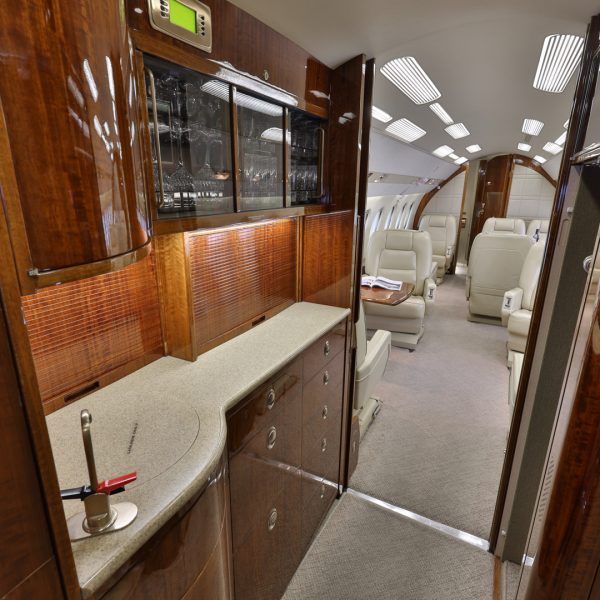

Galley Location: Forward

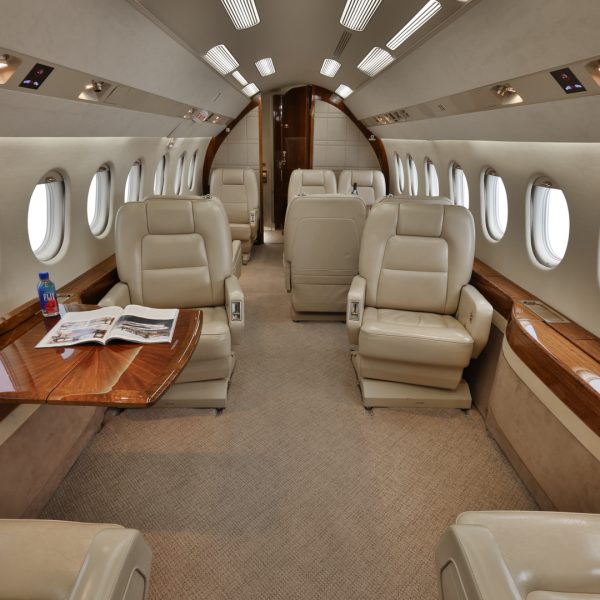

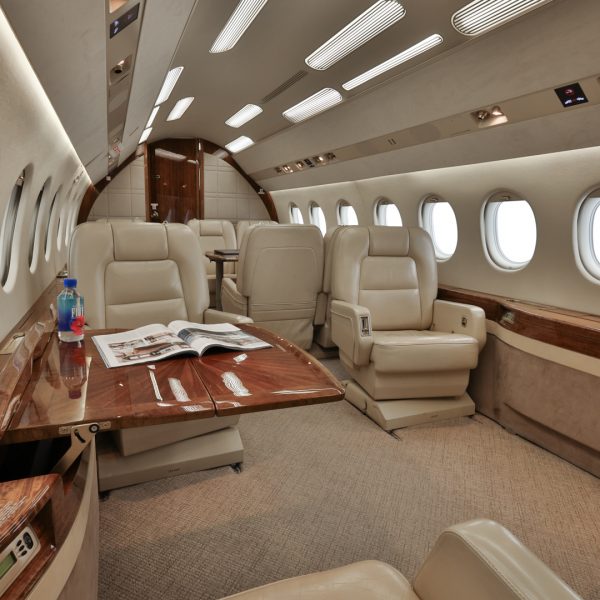

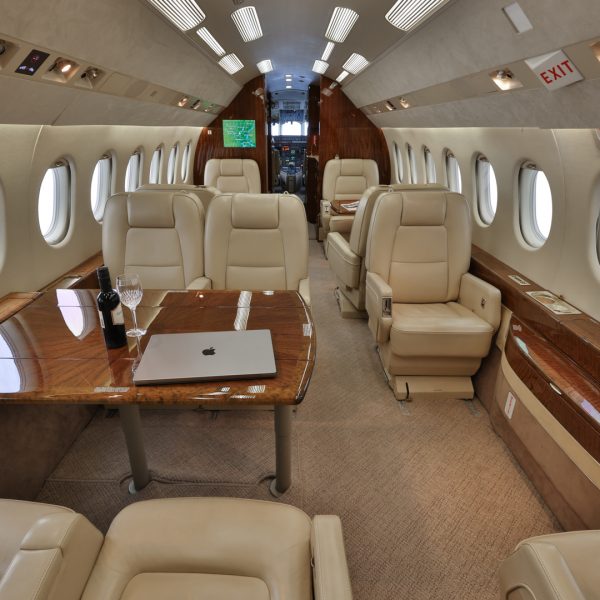

FWD Cabin Configuration: (4) Four Seat Club

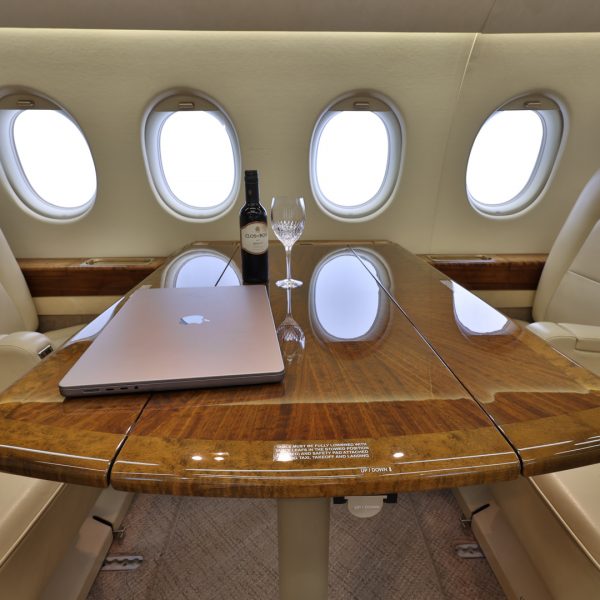

AFT Cabin Configuration: (4) Four Seat Conference grouping across from (2) Two Seat Club

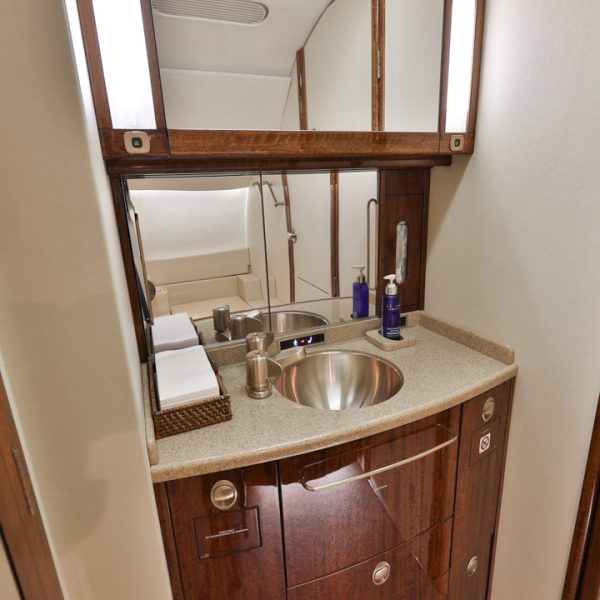

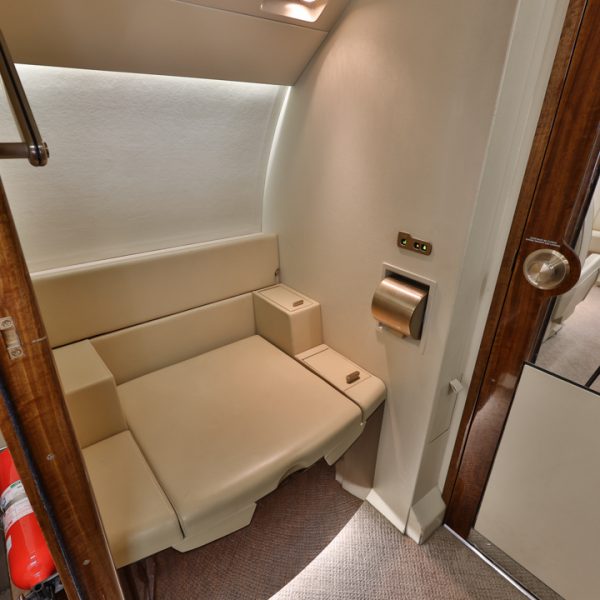

Lavatory Location(s): AFT
Electrical Outlets: 7 Total (1 in lav, 1 at each group x 4, 1 in galley, 1 in coat closet fwd)

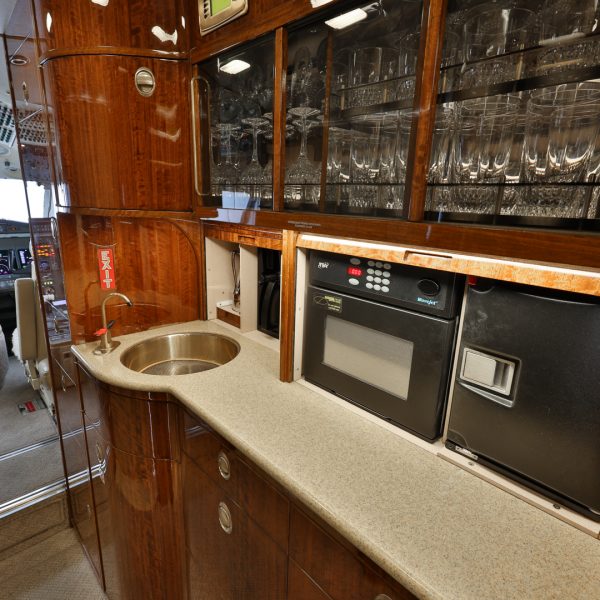

Additional Galley Equipment: Microwave, Hi-Temp Oven, Coffee Maker
Carpet: Tan Designed

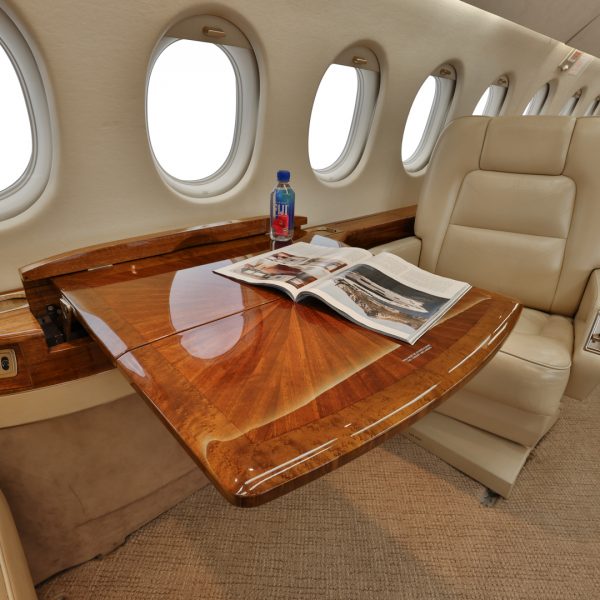

Woodwork: High Gloss Finish
Soft Goods: Beige Leather
Plating: Brushed Nickel
Last Refurbed: May, 2015
Facility Name: Dassault Aviation
Life Rafts: 2 x 10 persons capacity life rafts with survival and ELT’s
Low Rate Pressurization Mod

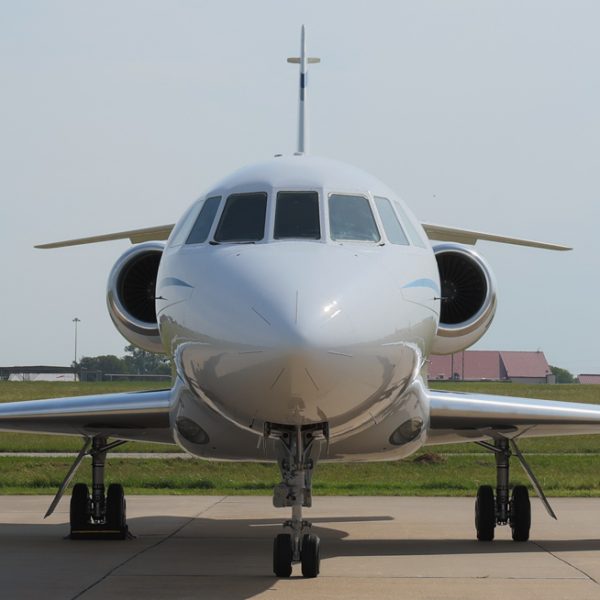

Base: White
Stripe: Blue and Gray
Last Painted: March 2018
Facility Name: Duncan Aviation
Maintenance Tracking: Veryon
Inspection / Completed / Interval / Remaining / Due
12 Month: 22-June-23 / 12 months / 9 months / 22-June-24
24 Month: 17-June-22 / 24 months / 9 months / 17-June-24
36 Month: 22-June-23 / 36 months / 33 months / 22-June-26
1B Inspections: 01-June-20 / 1,600 hours / 904.7 hours / 9,004.1
2C Inspections: 29-July-14 / 144 months / 34 months / 29-July-26
Dry Bay Mod: May 2015
