Estimated Current Time as of 05/22/23
Airframe Total Time: 4,623.1 hrs. Landings: 3,096
Engine 1
Pratt& Whitney PW305A
Engine Serial Number: PCE-CA0477
Total Time Since New: 4,474.9 Hrs.
Cycles Since New: 2,993 Cycles
Engine 2
Pratt& Whitney PW305A
Engine Serial Number: PCE-CA0476
Total Time Since New: 4,623.1 Hrs.
Cycles Since New: 3,093 Cycles
Engines Enrolled in ESP Gold
APU: Hamilton Sundstrand T-20G-10C3
Serial Number: SP-E130565
Total Hours: 2,981.9 Hrs.
APU Enrolled in 100% JSSI Coverage

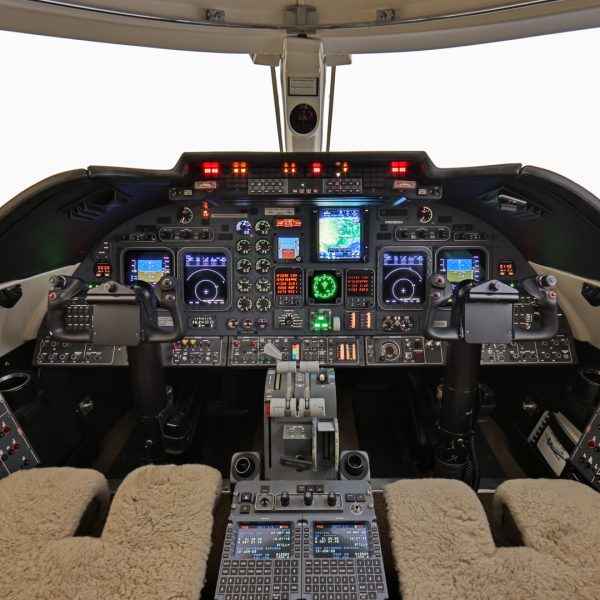

Dual Collins 4-Tube EFIS (Proline 4)
Dual Collins EFD-871 Flight Director
Dual Collins ADF-462
Dual Collins VHF-422C w/ 8.33 kHz Spacing
Dual Collins VIR-432 w/ FM Immunity
Dual Collins AHC-85E AHRS
Universal CVR-120
Dual Collins DME-442
Dual Universal UNS-1Ew FMS w/ WAAS/LPV
Garmin GTN 725 Touchscreen MFD
Garmin Flight Stream 510 Multi-media card
Dual Honeywell KHF‐950 with SELCAL
Dual Collins ALT-4000 Radar Altimeter
Honeywell Mark VII EGPWS Collins TTR-4000 TCAS II
Dual Collins TDR-94D Transponders w/enhanced surveillance
Collins RTA-854 Weather Radar
ADDITIONAL FEATURES
ADS-B Out Compliant
ATG 5000 Gogo WIFI
3-Rotor Brakes
Titanium Flap Brackets
Solid State DTU
Cockpit Voice Recorder
ICG Iridium SATCOM w/ Dual Channel Wireless Handsets
8.33 Channel spacing
FM Immunity
Belted Lav

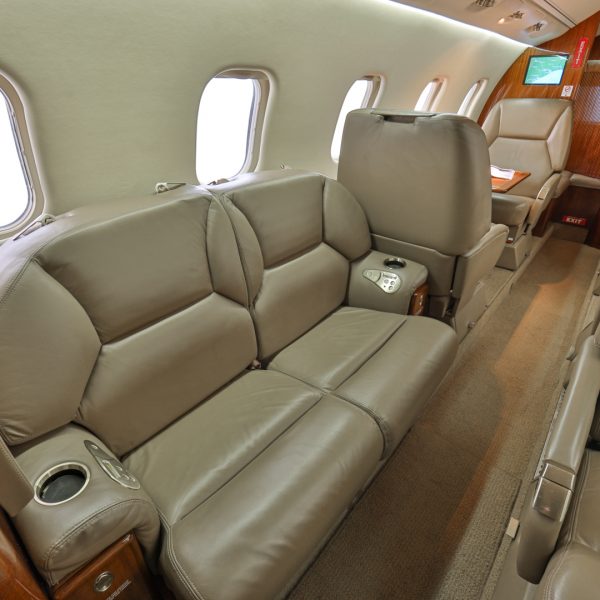

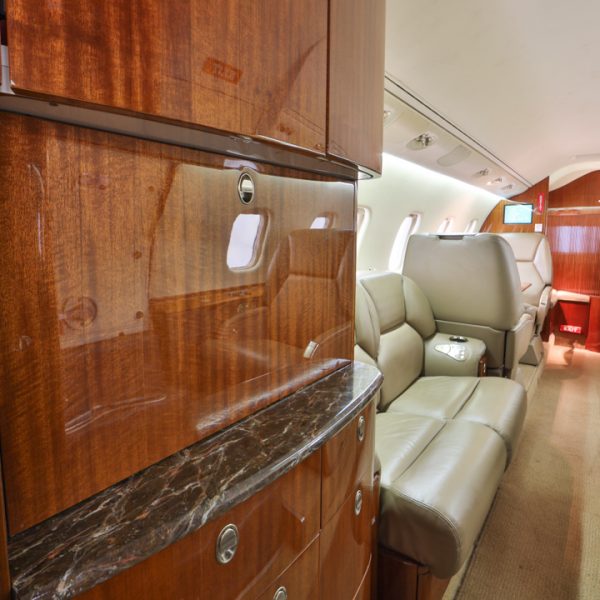

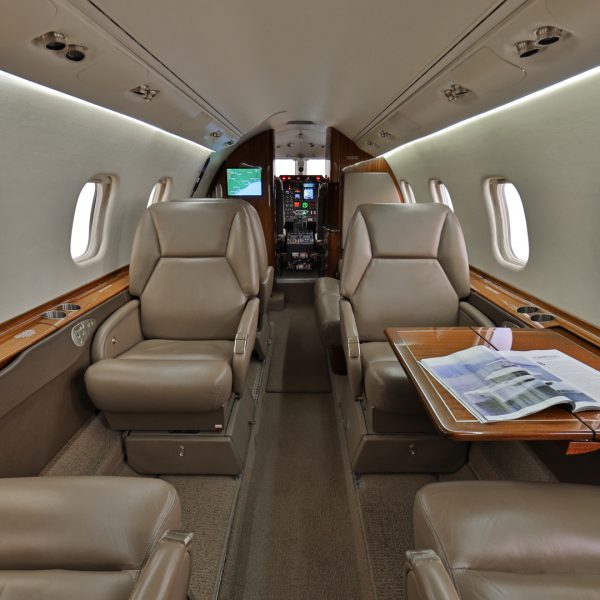

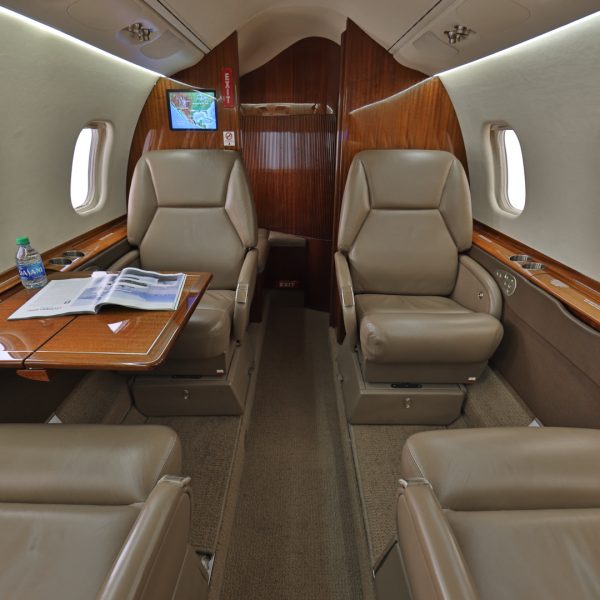

8 Passenger executive interior featuring Fwd 2-place divan opposite single forward-facing executive chair, Aft 4 place club & belted lav. All chairs upholstered in beige leather. Tan headliner and sidewalls Complimenting textured carpeting. Dual, Aft pyramid cabinets, full-service galley w/TIA microwave oven and dual thermal liquid containers. High-gloss cherry wood cabinetry.

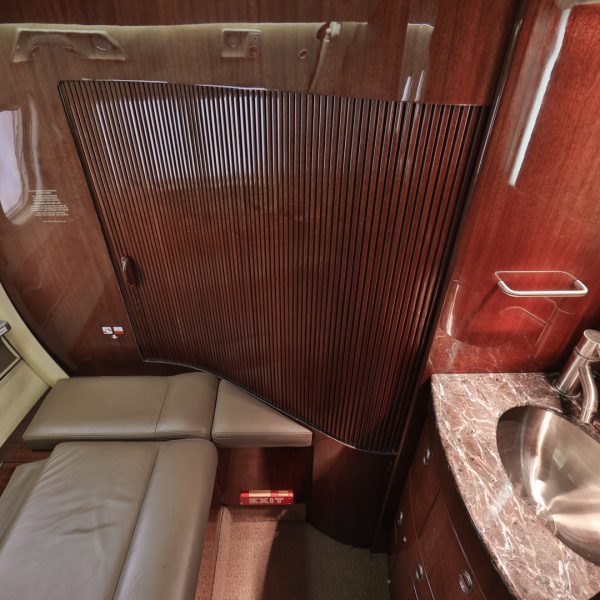

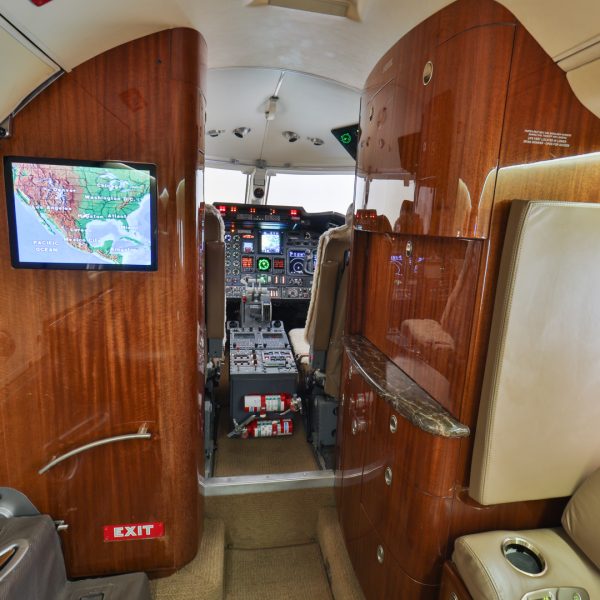

Emergency exit lighting, 110-volt AC/60 HZ power outlets, forward pocket doors, polished brass plating. Lav with sink and extended baggage/storage space, aft coat closet. Onboard Entertainment: Airshow 400 System with Fwd 15” monitor & Aft 10” monitor, 10 disc CD Player. (New Soft Goods July 2018 – M&J Aircraft – Anderson, Indiana).

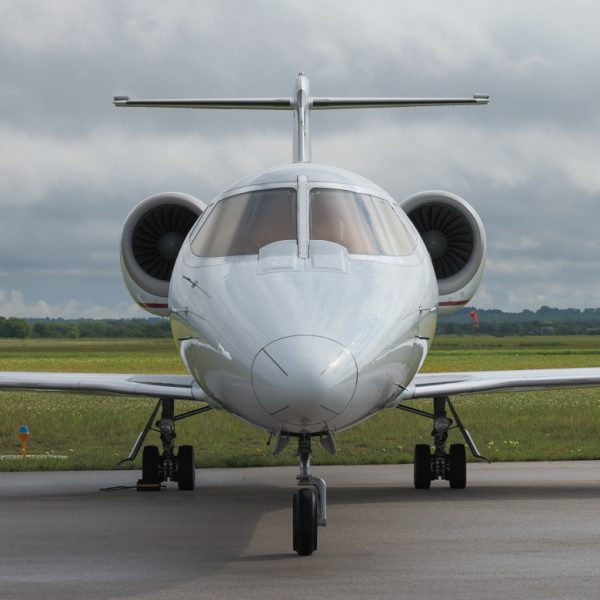

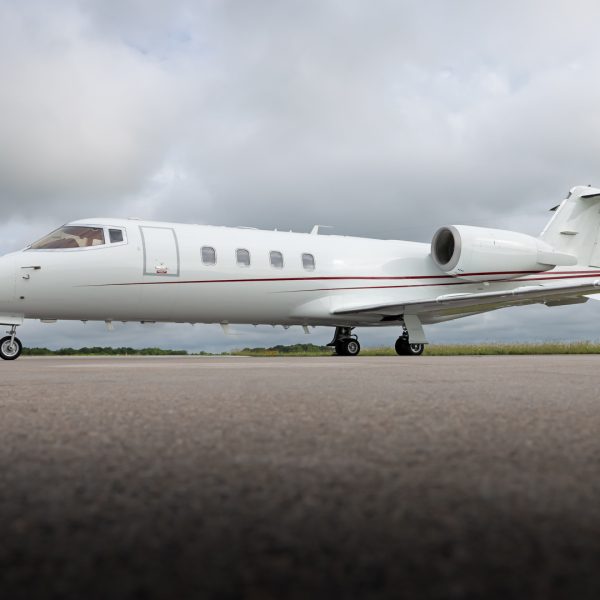

Overall Matterhorn white with red stripes (New October 2022 – Jim Miller – Uvalde, TX).
Enrolled on Learjet Evolved Maintenance Program
12 Year / 2400 Hour / 3000 Landing Inspection C/W July 2018
(Spectra Jet, Springfield, OH)
