JBA Aviation is an Authorized Dealer of the LET 410.

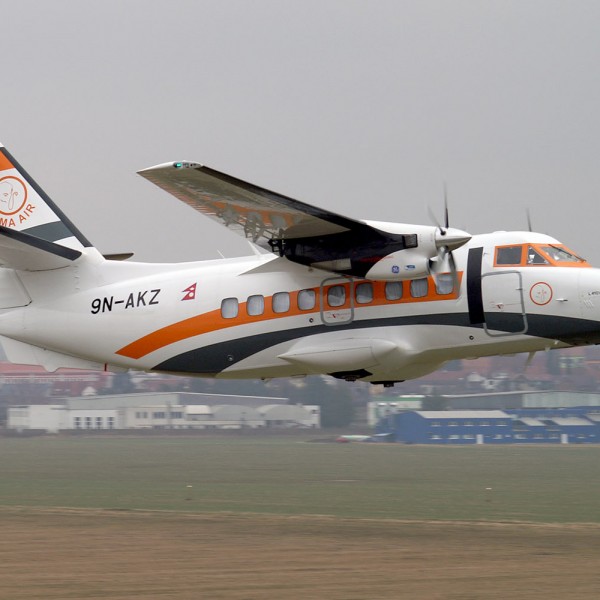

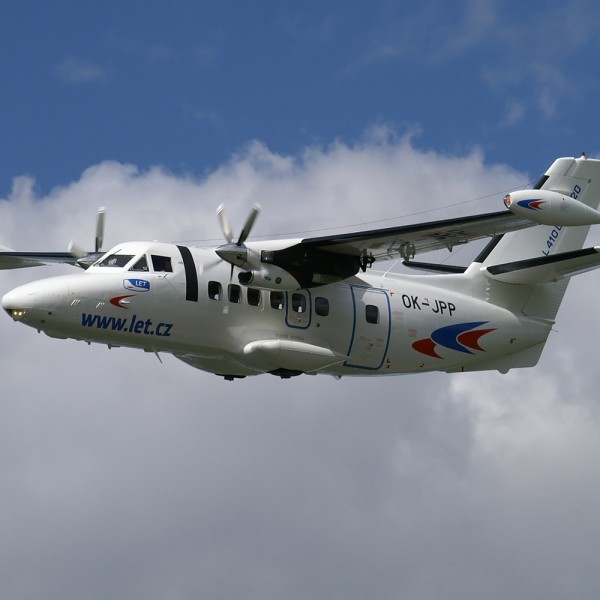

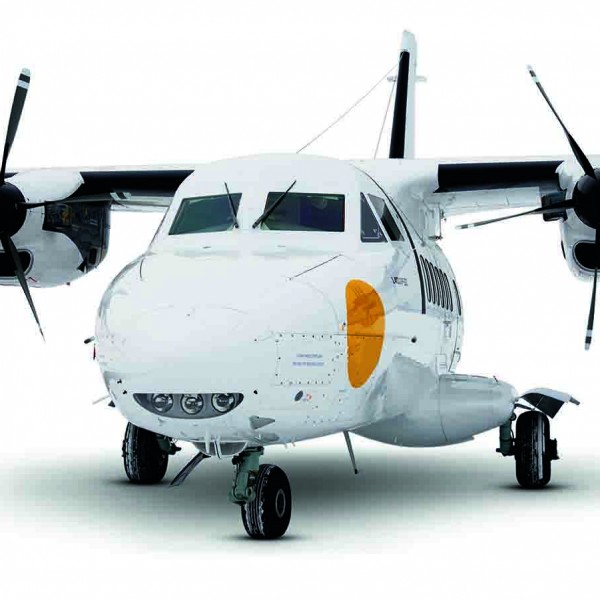

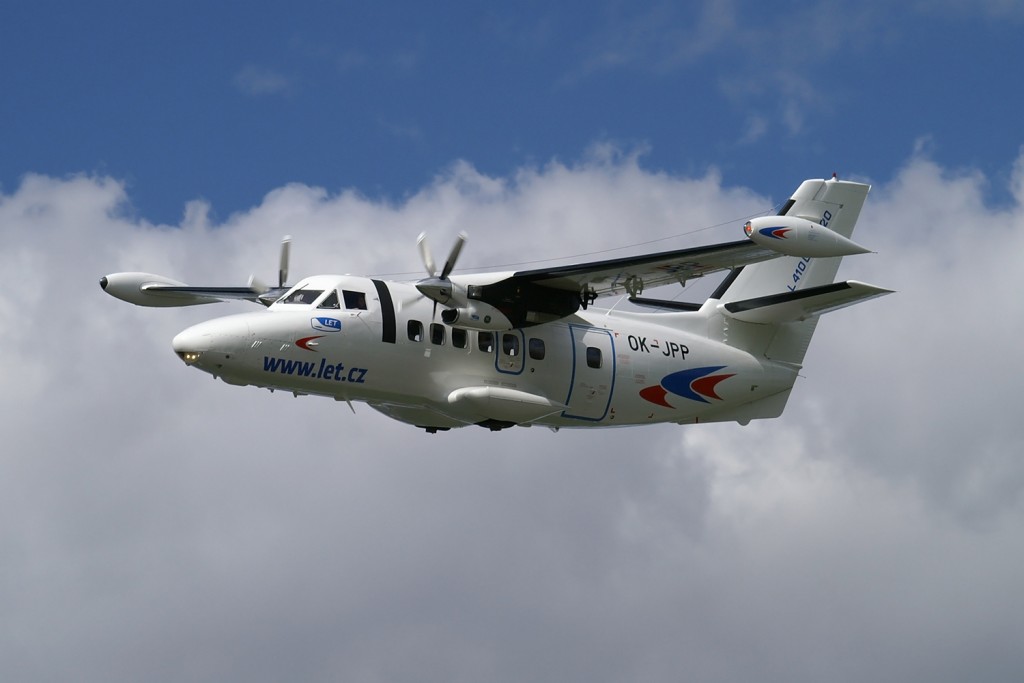

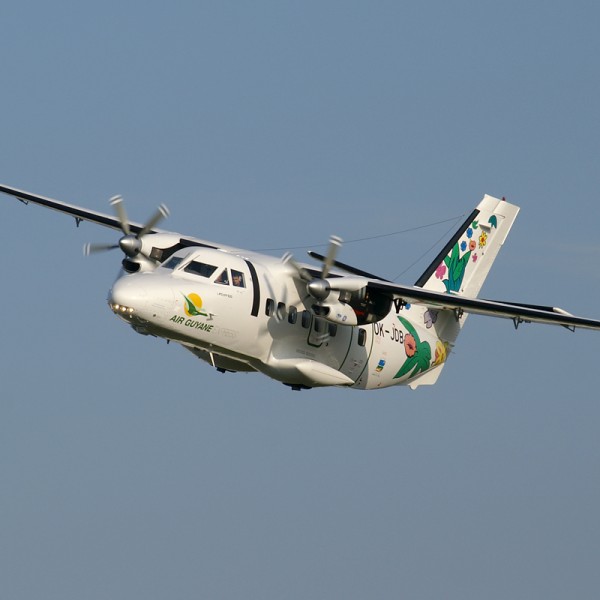

A spacious, oval fuselage provides almost 18 meters of cabin volume allowing for maximum versatility and utilization of the LET 410 for a number of different applications and special missions.
The LET 410 is produced in the following variants:
Standard commuter version
Cargo version
VIP passenger version
Flying ambulance version or life saving version
Skydiving version
Photogrammetric version
Maritime, patrol and surveillance version
High efficiency GE H80-200 engine enable hot and high performance
Metal 5-blade propeller, AV-725 is extremely durable
Front luggage compartment is accessible from the exterior
Wide track main wheels provide aircraft stability
Robust landing gear
Durable construction and aircraft systems that enable operation in extreme climatic conditions
Variable rear luggage compartment accessible from the interior
Slide or roll doors are possible installation features besides the standard passenger and cargo doors
Wing tip tanks enable 1500 km (810 NM) of range
LET aircraft has obtained certification in Argentina.
The LET 410 aircraft has been certified in the commuter category by EASA according to FAR 23 Regulation, Amendment 34, in many countries all over the world.
Max. Cruise Speed: 405 km/hr TAS 219 KTAS
Max. Range (ISA, FL140, fuel reserve for 45 min): 1500 km, 810 NM
Max. Endurance: 5.1 h
Operating Altitude: 4200 m, 14,000 ft.
Fuel Consumption: 240 kg/hr, 77 gal/hr
ENGINE MODEL: GE H80-200
Producer: GE Aviation Czech s.r.o.
Max. take-off performance: 597 kW/800 SHP
Max continuous performance: 522 kW/700 SHP
TBO: 3600 FH / 6600 FC
Dry Engine Weight: 201 kg
Without HSI (hot section inspection)
PROPELLERS MODEL: AV-725
Producer: Avia Propeller s.r.o.
Number of blades: 5
Diameter: 2,3 m (7, 5 ft)
Clockwise rotation
High propulsion efficiency
Reverse-thrust setting
TBO: 3600 FH / 6600 FC
Weight: 88 kg (207 lb)
Low noise level
The LET 410 is equipped with world-renowned brand avionics and instrumentation from Universal, Garmin and Honeywell. The aircraft is equipped for IFR flights.
Standard Equipment:
Semi-Glass Cockpit (EFI-890R)
Garmin GPS (GNS 430W)
EGPWS (MARK VI)
Weather radar (RDR 2000)
Optional Equipment:
TCAS II (CAS 67A)
Autopilot (KFC 325)
High Frequency Transceiver HF (KHF 1050)
